KT-PH

Pneumatic Marking Machine

The KT-PH Portable Pneumatic Marking Machine by Kuntai features a selectable control system and an integrated design. Therefore, this model is lightweighted, compact, and easy to carry for most users.

KT-PH is a pro in depth marking machine for metal parts

The KT-PH Portable Pneumatic Marking Machine by Kuntai features a selectable control system and an integrated design. Therefore, this model is lightweighted, compact, and easy to carry for most users. lt is suitable for outdoor and large workpiece marking, widely used in car modification shops, heavy-duty truck frame number marking, engine manufacturing repair process, and VlN code printing.

Lightweight and Portable

Integrated design for easy carrying.

High Efficiency

Rapid marking speeds improve work efficiency.

High Flexibility

Suitable for on-site marking and large workpieces.

Easy Operation

Simple to use, reducing operational complexity.

Multi-functionality

Can print national VIN codes and meets vehicle marking standards.

Optional Add-ons for your personalized production

Kuntai Laser offers a wide range of optional accessories for various industrial applications.

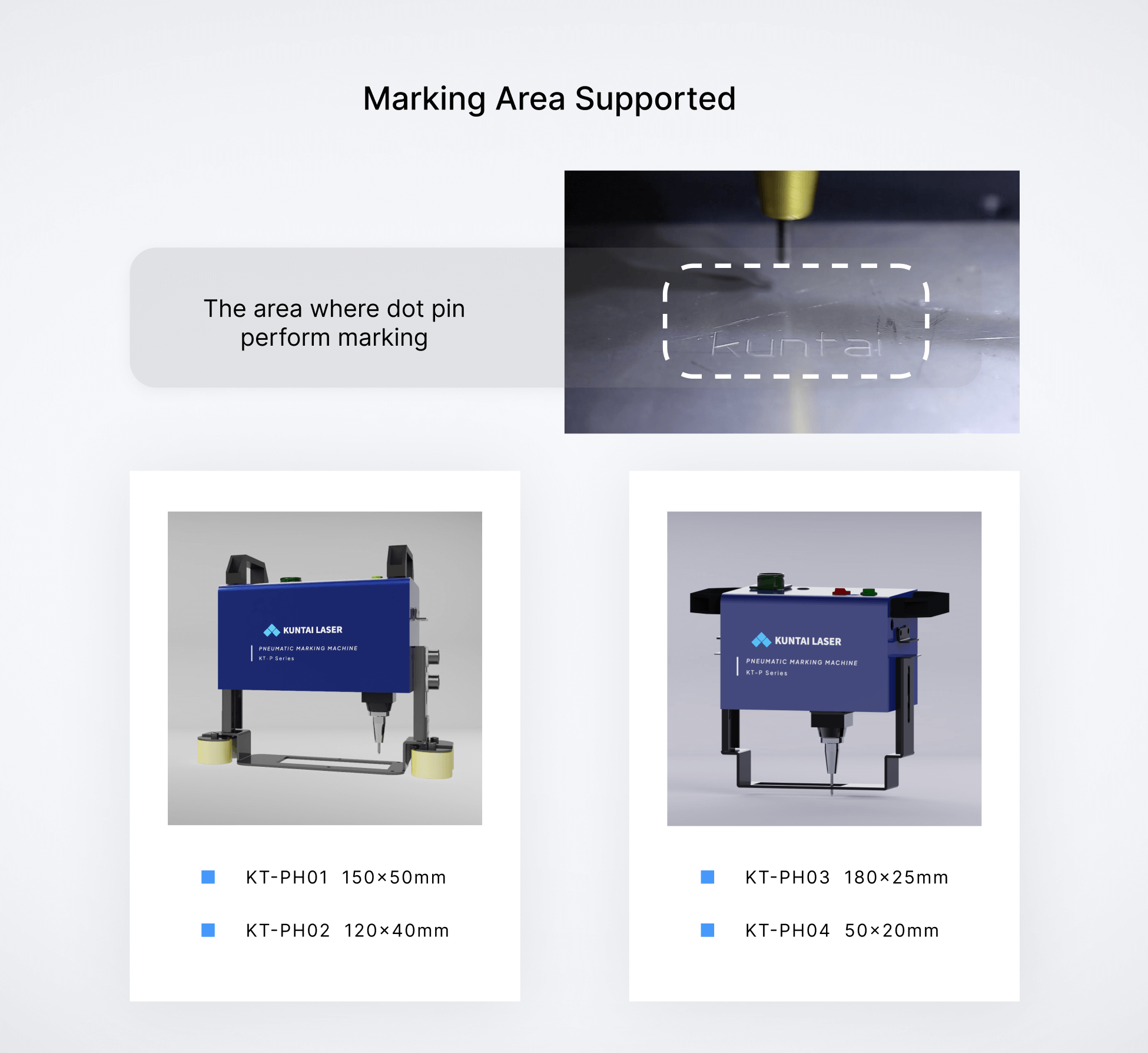

Marking Dot Pin

We provide 4 types of short dot pin for various marking depth and mark type needs. Please consult with our sales associate if you are not sure which type you need.

Extended Pin

Extended Pin is used along with V-shaped bracket for a long dot pin marking movement range.

V-Shaped Bracket

The bracket is used along with extended pin for a longer dot pin marking movement range.

V Magnet

Used to fix the position of metal parts that awaiting marking.

Technical Specifications

CategorySpecifications
Output Power20W, 30W, 50W, 100W
Laser TypeYtterbium-doped fiber
Wavelength1064 nm
Laser Source MTBF100,000 hours
Marking ProcessEtching, engraving, annealing
Typical Weight635 kg
CoolingAir cooling
Power Requirements120V, 230V, 240V / 15-40 AMP
Power Consumption1.5 kW to 5.8 kW
Operating Temperature10°C to 35°C
CommunicationsEthernet/IP, PROFINET
Multi-Parts MarkingPerformed with fixturing
Door Opening Duration3 s
Maximum Part Dimensions (W x D x H)650 x 600 x 370 mm
Part MaterialAluminum, zinc, magnesium, iron (all metals)
Marking Surface Roughness (Positioning) Tolerance+/- 3 mm
General Dimensions (W x D x H)1400 x 1200 x 2000 mm

Various industry Applications

Your various industrial needs can be fulfilled by Kuntai Laser’s pro-tested, efficient, and effective product lines

Metal Marking

Pneumatic Marking Machines are great for marking barcodes, serial numbers, codes on metal surfaces with depth.

VIN Marking

LoOur machines are reliable solution for permanent identification on automotive parts and components.

Personalized Solution for your need

Automated prodcution Line Intergration

Branded Product System

Robotic Arm, Machine Visual, etc

Machine System Size Configuration
