KT-LFF
The floor‑type KT‑LFF laser marking machine delivers high‑end precise fine marking for diverse metal and non‑metal materials.
The KT-LFF Floor Type Laser Marking Machine is widely used for high-end precision and fine marking. It is suitable for marking barcodes, QR codes, regular and irregular serial numbers on various metal and non-metal materials. It has a floor-sitting worktable for easier operation, and is recommened for non-mobile operation settings. If users are looking into laser marking machines that’s portable for operations at outdoor or various production areas, Kuntai Laser is proud to present our KT-LFP, KT-LFH, KT-LFM, and KT-LFT model.
Fine laser beam ensures high-precision marking.
Fast marking speed enhances efficiency.
Stable performance suitable for long-term continuous work.
Supports marking of barcodes, QR codes, and serial numbers.
Suitable for various high-end precision devices.
Kuntai Laser offers a wide range of optional accessories for various industrial applications.
The rotary module is needed for marking on circular surface.
Prevent visual damage caused by the placement of a laser.
Used to trigger marking operation as a replace for the manual switch.
Used to fix position of the marked object.
Assembling and adjustment tools.
| Laser Power | 20-300W |
|---|---|
| Wavelength | 1064nm |
| Working Area | 100*100/200*200/300*300 |
| Curved line speed | <=7000mm/s |
| Cooling System | Air cooled |
| Repeat Precision | (+-0.001mm) |
| Complete Machine Power Consumption | <=800W/<=1100W |
| Indication Light | Red light |
| Service Voltage | AC 220V+10%/50HZ |
| Rotating Working Table | Optional |
| System Requirement | Windows 7,10,11 or opt for Touch Screen Version (no computer required) |
Your various industrial needs can be fulfilled by Kuntai Laser’s pro-tested, efficient, and effective product lines
metal: stainless steel, brass, aluminum alloy, bronze, titanium alloy) non-metai: most plastics, construction materials, PVC pipes

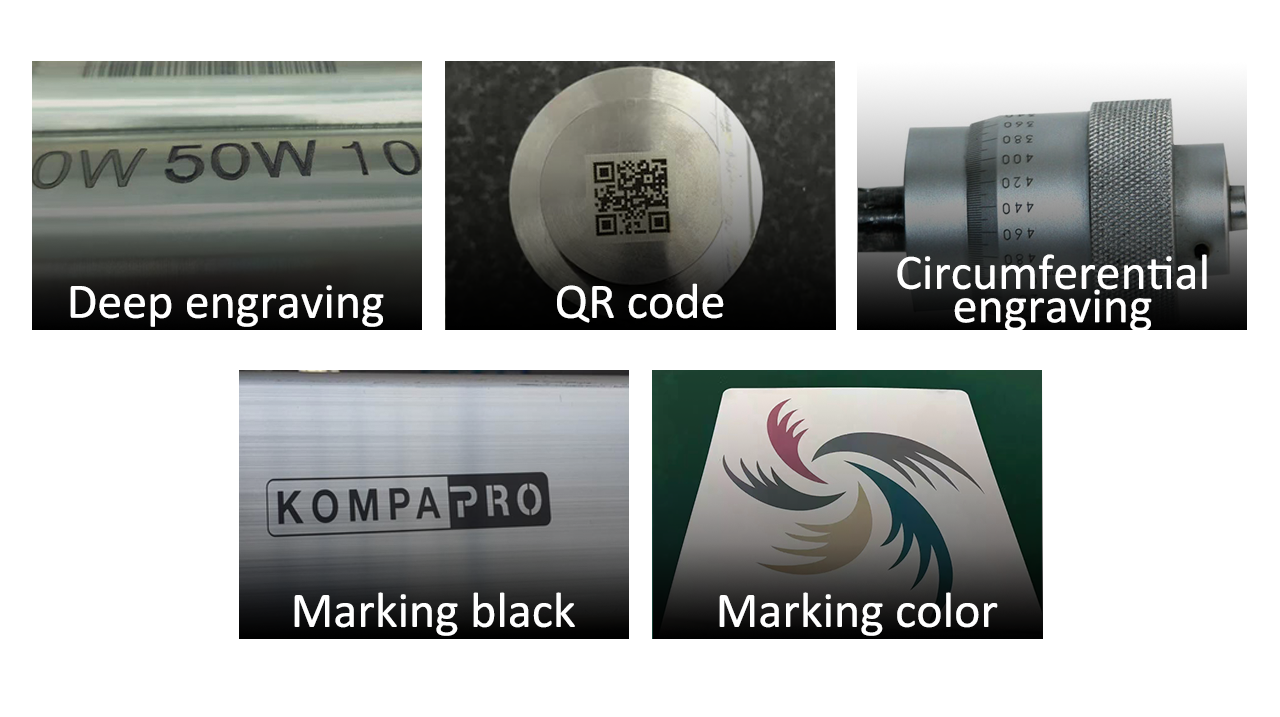

Offers various forms of marking capabilities.
Jiangsu Kuntai Industrial Equipment Co, Ltd., (Kuntai Laser) established in 2007, is a high-tech enterprise specializing in the research, development, production, and sales of laser marking, cutting, welding, and cleaning equipment.
