KT-LFA

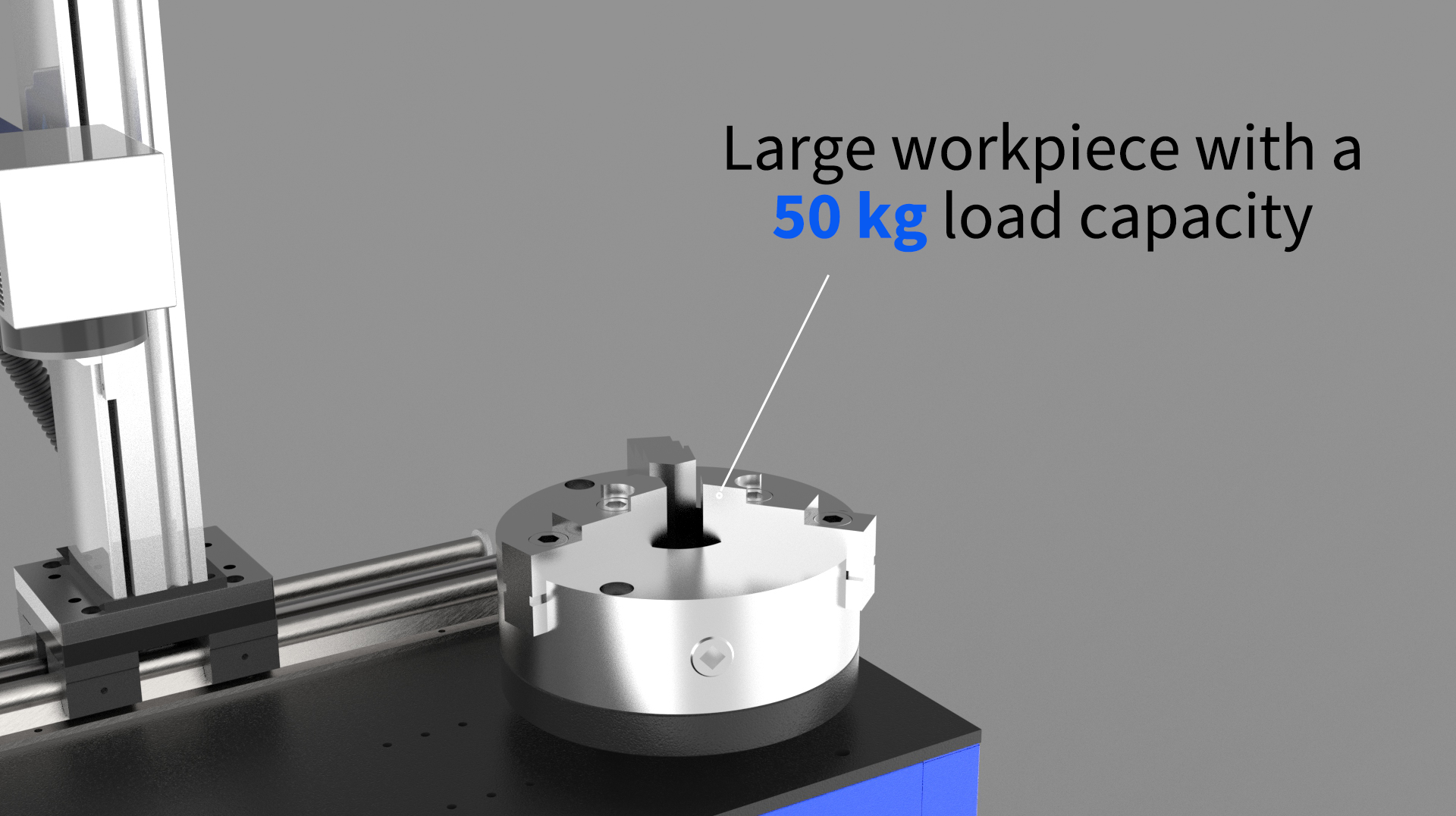

The KT‑LF series creates permanent circumferential marks on 10‑600 mm flanges with 50 kg‑standard /100 kg‑heavy‑duty load capacity.

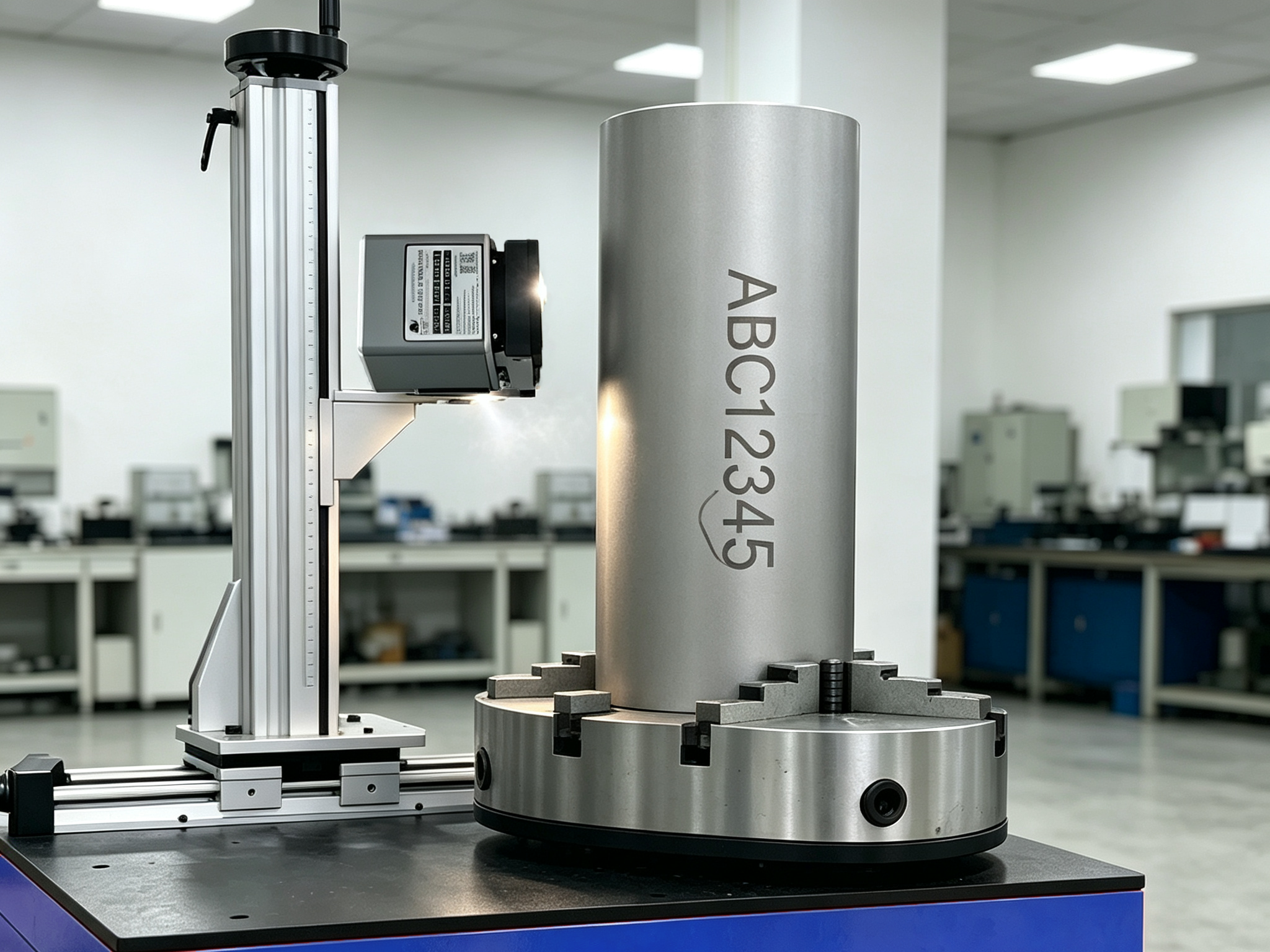

The KT-LF series Fiber Laser Flange Marking Machine uses a high-energy density laser beam to locally irradiate the workpiece, causing the material surface to vaporize or change color, creating a permanent mark. It is particularly suitable for marking around the circumference of flanges, with a diameter range of 10mm-600mm. The standard flange can bear up to 50kg, and the heavy-duty flange can bear up to 100kg.
The fine laser beam ensures high precision marking, suitable for delicate workpieces.
Rapid marking speed significantly improves production efficiency.
Stable operation ensures reliable performance over long-term use.
Low energy consumption design reduces energy waste.
No smoke or harmful gas emissions, meeting environmental standards.
Customizable marking content and styles based on customer requirements.
Kuntai Laser offers a wide range of optional accessories for various industrial applications.
Prevent visual damage caused by the placement of a laser.
Used to trigger marking operation as a replace for the manual switch.
| Laser Power | 20-300W |
|---|---|
| Wavelength | 1064nm |
| Working Area | 100*100/200*200/300*300 |
| Curved line speed | <=7000mm/s |
| Cooling System | Air cooled |
| Repeat Precision | (+-0.001mm) |
| Complete Machine Power Consumption | <=800W/<=1100W |
| Indication Light | Red light |
| Service Voltage | AC 220V+10%/50HZ |
| Rotating Working Table | Optional |
| System Requirement | Windows 7, 10, or 11, or opt for Touch Screen Version (no computer required) |
Your various industrial needs can be fulfilled by Kuntai Laser’s pro-tested, efficient, and effective product lines
metal: stainless steel, brass, aluminum alloy, bronze, titanium alloy) non-metai: most plastics, construction materials, PVC pipes
Suitable for 360° circumferential marking of heavy-duty cylindrical and flanged workpieces in industries such as wind power, valves, pressure vessels, and construction machinery.
Jiangsu Kuntai Industrial Equipment Co, Ltd., (Kuntai Laser) established in 2007, is a high-tech enterprise specializing in the research, development, production, and sales of laser marking, cutting, welding, and cleaning equipment.
