KT-LFD
The desktop‑type KT‑LFD laser marking machine delivers fine‑quality marking on most metals, non‑metals and 80% of plastics with minimal material loss thanks to its fiber laser’s tiny heat‑affected zone.
The KT-LFP Portable Laser Marking Machine is designed for easy carrying and simple marking. It integrates multiple functions, meeting various operational needs, and allows flexible positioning for marking. Users can easily carry this model to operational areas and perform laser marking with ease.
Fine laser beam ensures precise marking with high quality.
Fast marking speed enhances efficiency.
Stable performance suitable for long-term continuous work.
Does not damage products or cause wear, suitable for high melting point and high hardness materials.
Small heat-affected zone and minimal material consumption.
Kuntai Laser offers a wide range of optional accessories for various industrial applications.
The workpiece position and height can be adjusted to improve the marking accuracy and flexibility of the laser marking machine on complex surfaces.
The rotary module is needed for marking on circular surface.
Prevent visual damage caused by the placement of a laser.
Used to trigger marking operation as a replace for the manual switch.
Used to fix position of the marked object.
Assembling and adjustment tools.
| Laser Power | 20-300W |
|---|---|
| Wavelength | 1064nm |
| Working Area | 100*100/200*200/300*300 |
| Curved line speed | <=7000mm/s |
| Cooling System | Air cooled |
| Repeat Precision | (+-0.001mm) |

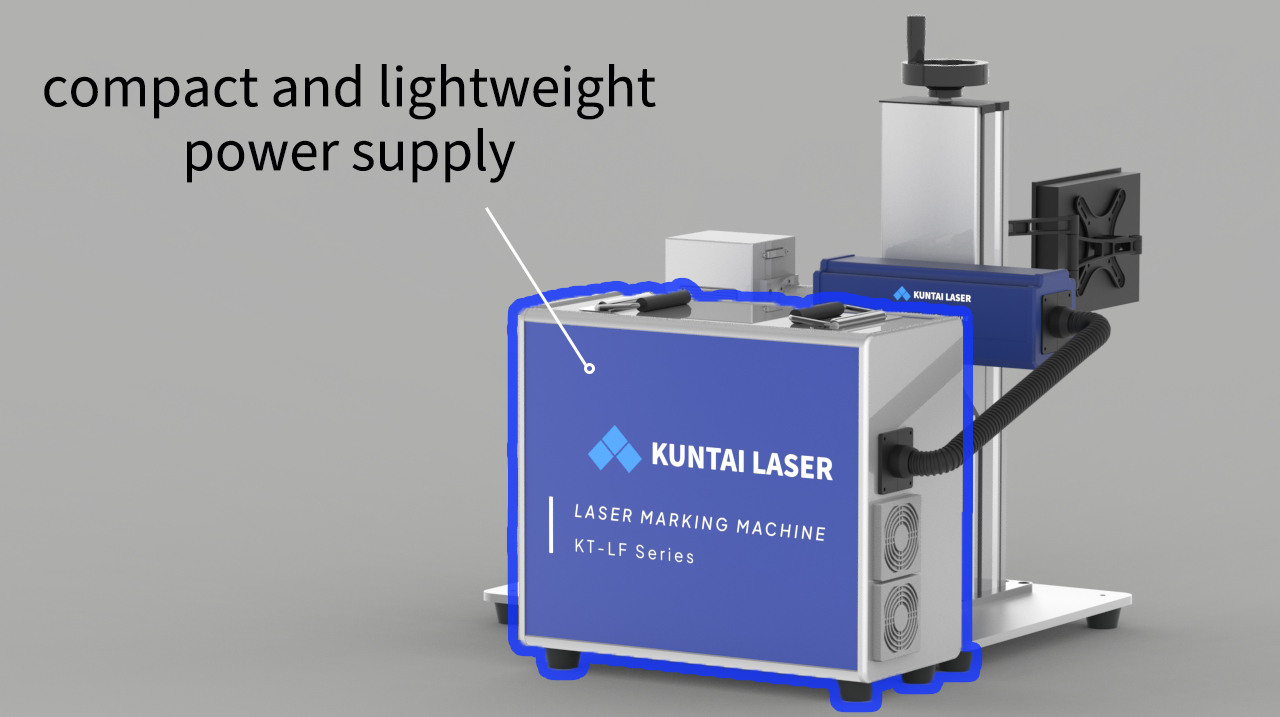

| Complete Machine Power Consumption | <=800W/<=1100W |
| Indication Light | Red light |
| Service Voltage | AC 220V+10%/50HZ |
| Rotating Working Table | Optional |

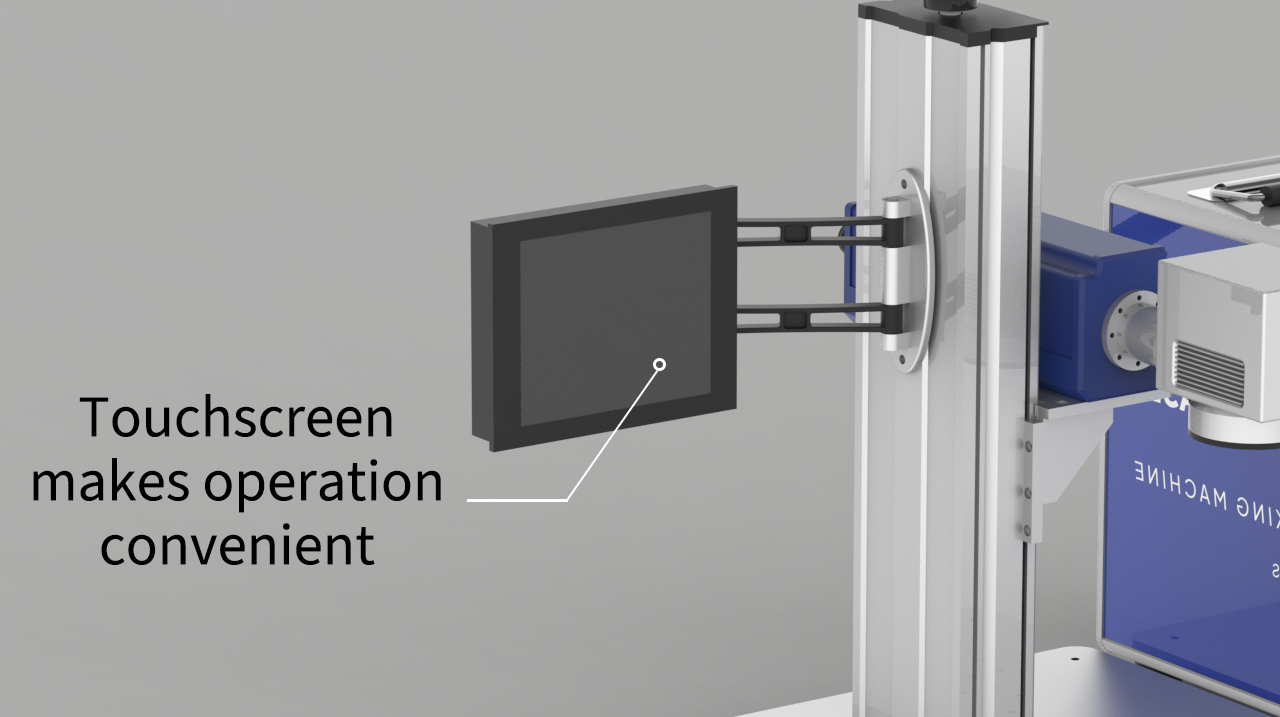

| System Requirement | Touch Screen Version (no computer required) |
Your various industrial needs can be fulfilled by Kuntai Laser’s pro-tested, efficient, and effective product lines
metal: stainless steel, brass, aluminum alloy, bronze, titanium alloy) non-metai: most plastics, construction materials, PVC pipes
Jiangsu Kuntai Industrial Equipment Co, Ltd., (Kuntai Laser) established in 2007, is a high-tech enterprise specializing in the research, development, production, and sales of laser marking, cutting, welding, and cleaning equipment.
